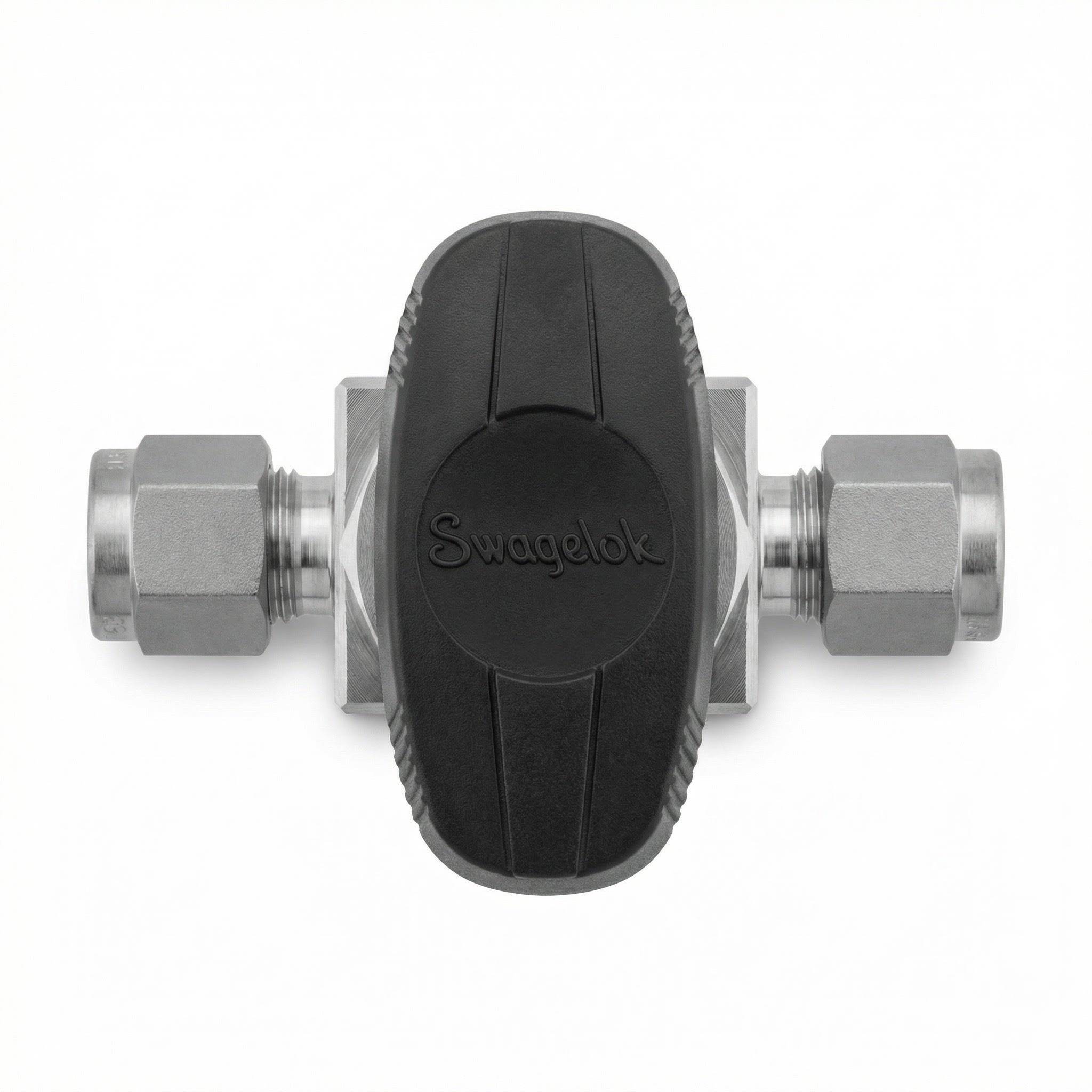

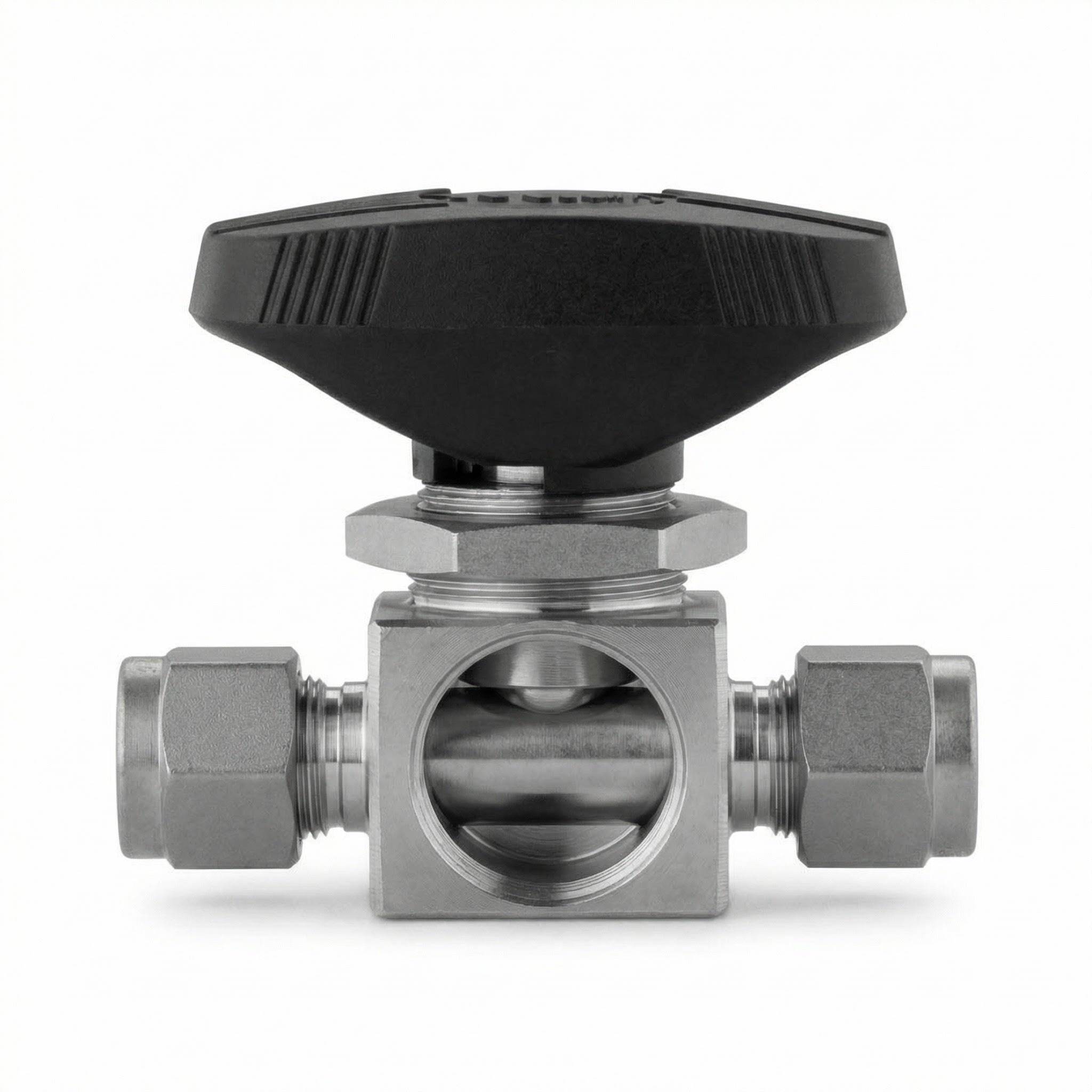

Swagelok SS-45TS8-K Ball Valve

Need reliable on/off control for high-pressure instrumentation systems?

This Swagelok SS-45TS8-K ball valve delivers quarter-turn shutoff with the legendary reliability Swagelok is known for. Built with 316 stainless steel construction and featuring a live-loaded stem design, this 1-piece ball valve provides bubble-tight sealing for demanding industrial applications.

Perfect for process control, sampling systems, analyzer feeds, and any application where leak-free isolation is critical. The 1/2″ compression tube fittings on both ends make installation fast and reliable.

Key Features

One-piece 316 stainless steel body for two-way straight (shutoff) flow
Live-loaded PFA packing permits in-line packing adjustment
PTFE-coated stainless steel seat
12 Cv with 0.406 in. (10.3 mm) orifice
Black oval handle
Low Emissions Certified (tested per WS-22)

Technical Specifications

Part Number: SS-45TS8-K
Brand: Swagelok
Type: Ball Valve (one-piece instrumentation, quarter-turn, 2-way shutoff)
Body Material: 316 Stainless Steel (body)
End Connections: 1/2 in. Swagelok tube fitting (both ends), 2-way straight/shutoff pattern
Orifice: 0.406 in. (10.3 mm)
Flow Coefficient (Cv): 12
Working Pressure: 2500 psig @ 100 F (172 bar @ 37 C)
Temperature Rating: -65 to 300 F (-53 to 148 C)
Seat Material: PTFE-coated stainless steel
Stem Packing: Live-loaded PFA
Handle: Oval handle (black)
