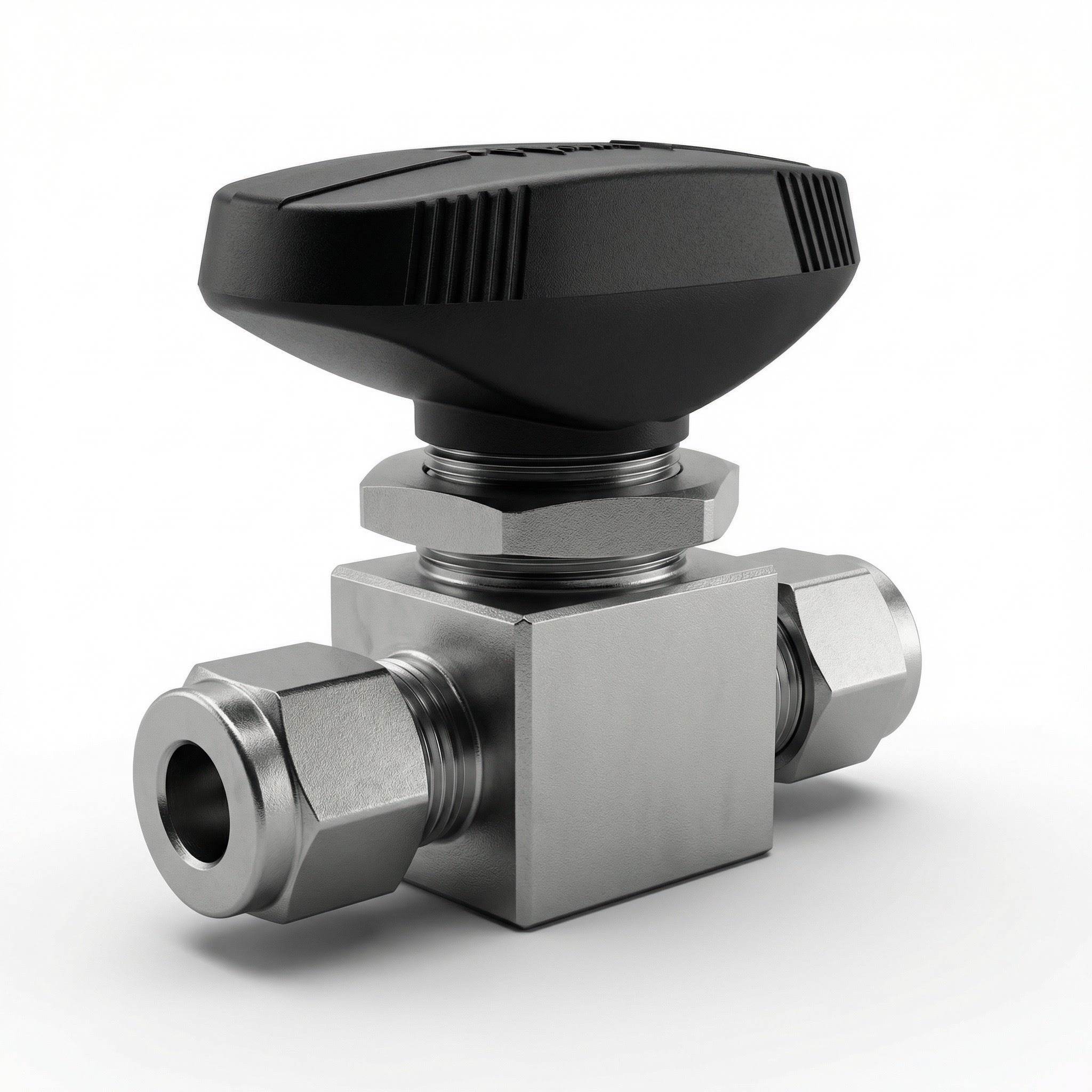

Swagelok SS-1VS8 316 stainless steel integral bonnet needle valve with black phenolic knob, 1/2 inch Swagelok tube fitting

DK-LOK DLBM-N-B Male Elbow (45°, Brass)

The DK-LOK DLBM is a twin-ferrule, gaugeable male 45 degree elbow that connects a tube line to a male pipe thread (MPT) end at a 45 degree angle. The ‘-N’ designates the tapered NPT pipe thread and ‘-B’ designates brass construction. The tube side uses DK-LOK’s two-ferrule gaugeable design; the threaded side seals on a tapered NPT thread.

Key Features

Twin (double) ferrule gaugeable tube-grip design
45 degree elbow configuration
Male pipe thread (NPT) connection on the threaded end
Brass construction (-B)
Tapered NPT pipe thread (-N)
Available in fractional and metric tube sizes

Technical Specifications

Brand: DK-LOK
Part Code: DLBM-N-B
Type: Male 45 deg Elbow (Tube to Male Pipe Thread)
Material: Brass
End Connections: Tube OD (twin-ferrule) x male pipe thread (MPT/NPT)
Configuration: 45 degree male elbow
Ferrule Design: Twin (double) ferrule, gaugeable
Working Pressure: Size-dependent per DK-LOK catalog (brass rating lower than stainless)
Temperature Rating: COMING SOON (brass-specific range not confirmed)
Tubing Spec: For compatible annealed tubing per DK-LOK catalog
Tube OD Range: 1/8 in. to 1 in. O.D. (male elbows, per DK-LOK DLBM catalog)
Design Standard: Twin-ferrule fitting, tested to ASTM F1387
Working Pressure: Rated by tube size and wall thickness per the DK-LOK catalog. Call for quote.
