DK-LOK DMC-G-B Male Connector (Gasket Seal, Brass)
The DK-LOK DMC-G is a male connector that joins a DK-LOK twin-ferrule tube end to a straight-thread male port sealed with a bonded or metal gasket (the -G sub-family is built for gasket-seal threads rather than tapered NPT). The -B suffix indicates a brass body. It delivers a gauge-able, leak-tight tube grip on one end and a flat-face gasket-sealed thread on the other.
Key Features
- Twin (two) ferrule tube end for leak-tight, gauge-able connection
- Straight male thread sealed by bonded or metal gasket (G sub-family)
- Brass body construction
- Back-ferrule design grips across tube wall thickness and O.D. combinations
- Offered in fractional and metric tube sizes
- Gasket seal provides reliable face seal without thread sealant/tape
Technical Specifications
- Brand: DK-LOK
- Part Code: DMC-G-B
- Type: Male Connector for Gasket Seal
- Material: Brass
- Design: Twin (two) ferrule compression
- Connection 1: DK-LOK tube O.D.
- Connection 2: Male straight thread for gasket (bonded/metal) seal
- Thread Seal Type: Bonded or metal gasket face seal
- Tube Size Range: COMING SOON
- Working Pressure: Governed by connecting tubing rating
- Tube OD Range: 1/16 in. to 2 in. (fractional); 2 mm to 38 mm (metric)
- Design Standard: Twin-ferrule fitting, tested to ASTM F1387
- Working Pressure: Rated by tube size and wall thickness per the DK-LOK catalog. Call for quote.
Share
Order Today from Collins-Oliver
Ready to get the leak-free reliability your system demands?
Contact Collins-Oliver for competitive pricing, same-day pickup in Baton Rouge.
Location
9821 S Perdue Ave. Baton Rouge, LA 70814
Don't settle for generic valves that leak and fail. Get genuine brand quality with local support and same-day availability.
Related Products
Parker CPI Single Ferrule NPT Male Connector, 3/16 in. Tube OD x 1/8 in. Male NPT, Brass
Learn More

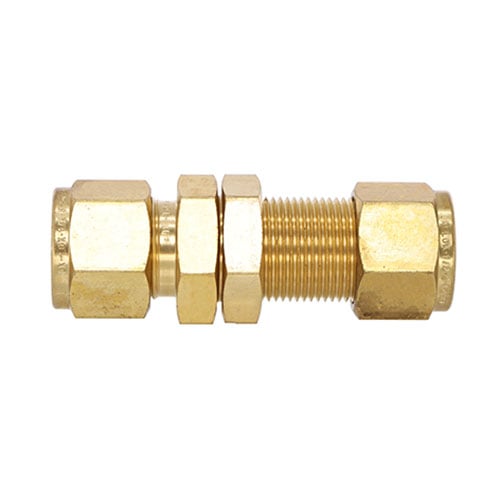

DK-LOK DUB Bulkhead Union
